Tetramethylethylenediamine: Insights, Experience, and Reflections
Historical Development
Chemistry, like any other science, grows through persistent efforts and keen curiosity. Looking back at the twentieth century, research teams started leaning on ligands and organic helpers to fine-tune their reactions and invent more precise methods. Tetramethylethylenediamine, often called TMEDA or Me2N–CH2–CH2–NMe2, sparked ongoing interest as soon as organolithium chemistry took off. In my lab days, researchers would trade stories about early organometallic experiments and how TMEDA brought stubborn reagents to life. Chemists were looking for ways to tweak basic reactions, make compounds more accessible, and control the formation of new bonds. That hunger for better processes fueled the adoption of TMEDA in fields ranging from pharmaceuticals to high-performance polymers.
Product Overview
TMEDA earned its stripes thanks to its reliable role as a chelating diamine. Laboratories value it as a colorless liquid with a sharp odor. During a late-night synthesis run, I found TMEDA’s volatility stood out — it evaporated fast enough to remind you to keep those bottles sealed tight. The compound’s main job revolves around its ability to coordinate with metal ions, often making small changes to solubility and reactivity that tip the scales in favor of smoother reactions. It hosts four methyl groups on the nitrogens, a design that grants steric hindrance and just the right degree of basicity. With an approachable boiling point and low freezing point, the product adapts to demands ranging from solution chemistry to batch industrial settings.
Physical & Chemical Properties
Every bottle of TMEDA tells a direct story. Boiling point comes up near 121–122°C, and it doesn’t freeze until –55°C. Its density stands at 0.775 g/cm³ at 20°C, and it dissolves well in polar and nonpolar solvents, marking it out as a flexible choice for practical workshops. The liquid’s pungent, fishy smell certainly doesn’t endear it to newcomers, but experienced hands focus more on its function than its scent. It resists oxidation fairly well under normal conditions, which matters for storage and transport. TMEDA acts as a basic bidentate ligand, boasting a pKa of about 9 (conjugate acid), and it combines well with lithium or magnesium for making Grignard and organolithium reagents. Through years of chemical handling, I learned TMEDA’s mix of volatility and basic strength cuts down on side reactions and makes purification steps easier, especially in complex organic syntheses.
Technical Specifications & Labeling
A typical TMEDA bottle arrives marked with CAS Number 110-18-9. The purity range extends from 98% to HPLC-verified grades for sensitive tasks. Wholesale suppliers label drums or bottles as flammable — a flaming droplet during my early training left no doubt about its volatility. Labels always feature the familiar GHS pictograms: flame, exclamation mark, and sometimes the health hazard silhouette if sold in large industrial volumes. Product sheets break down moisture content limits, residual amine impurities, and sometimes heavy metal traces. Users keep Material Safety Data Sheets (MSDS) close, particularly to review shelf-life details and safe storage temperatures.
Preparation Method
Making TMEDA on a large scale starts with methylating ethylenediamine, usually through a two-step alkylation. Manufacturers add methyl chloride or dimethyl sulfate under controlled conditions to avoid runaway exothermic reactions, mixing with aqueous sodium hydroxide to quench excess acids. I’ve witnessed semi-batch setups with recirculating cooling systems to handle the reaction’s heat and to capture escaping methylamines. Recovery relies on vacuum fractional distillation — high energy consumption but yields product at impressive purity. Small labs sometimes take a shortcut, but industry rarely cuts corners due to impurity risks and regulatory oversight.
Chemical Reactions & Modifications
Working with TMEDA in organic chemistry reminded me how small tweaks in a molecule unlock new doors. In the lab, TMEDA joined organolithium compounds, like n-butyllithium, instantly forming more stable complexes. Those complexes allowed for precise deprotonations or enolate formations, and even tricky metalations became routine. TMEDA partners with magnesium, zinc, and some early transition metals to coax out unique reactivities. Beyond that, the methyl groups open a route to N-oxide or quaternized derivatives, providing researchers with building blocks for ionic liquids or modified catalysts. Industry turns these variations into specialty solvents, extraction agents, or polymerization aids.
Synonyms & Product Names
Ask a chemist, and you’ll hear names like “N,N,N’,N’-Tetramethylethylenediamine,” “TMEDA,” “TMED,” and “Pentamethylethylenediamine.” Some catalogs simplify things to “1,2-Bis(dimethylamino)ethane.” Safety flyers sometimes list legacy codes and supplier-specific labels. Often, it’s “TMEDA for synthesis” or “high-purity TMEDA” on industrial shelves. Each name connects directly to the same compound, but branding and context can spark confusion, so many labs set standard naming guidelines for ordering or stock control.
Safety & Operational Standards
Every time I uncapped a bottle of TMEDA, a sharp, ammonia-like odor ran through the air, reminding everyone to work under the fume hood. Flammability figures high on the agenda, with a flash point around 16°C and lower explosive limits in air just below 1%. Regulatory agencies require users to monitor airborne concentrations, and spill response kits always include absorbent materials and chemical splash goggles. Direct skin contact brings irritation or even mild chemical burns, so gloves are a must. Handling procedures rest heavily on MSDS advice: keep away from ignition sources, ventilate storage areas, and store under inert atmosphere for long-term stashes. Fire drills and safety audits make strong mandates in facilities where TMEDA flows near open flames or in reaction setups with strong oxidizers. Incident reports stress the compound’s toxicity if inhaled or ingested, advising immediate medical attention after suspected exposure.
Application Area
No discipline claims TMEDA more than organic synthesis. I saw its reputation grow in metallation reactions, where it tamed aggressive bases and kept conditions controlled. Industrial-scale use appears in rubber manufacturing, specialty coatings, and even in agents for agricultural chemical formulation. Metal plating operations draw on TMEDA complexes to tweak ion mobility and film uniformity. Academic labs use it in the stoichiometric prep of enolates, ylides, and tailored catalysts. Polymers and specialty solvents rely on its chelation, steering crosslinking or molecular assembly steps. Each application benefits from TMEDA’s ability to pull metals or moderate pH without introducing too much water or extra salts.
Research & Development
Teams continue to dig into TMEDA’s influence on new types of lithium or magnesium compounds. My time collaborating with advanced catalysis groups opened my eyes: changing the ligand environment by switching to TMEDA could double reaction selectivity and stop unwanted by-products in their tracks. Pharma research leans into TMEDA-balancing techniques for crafting active intermediates. Environmental applications experiment with TMEDA-modified sorbents to capture heavy metals or boost water purification. Each fresh article or patent builds on decades of experimentation but pivots toward higher sustainability, efficiency, and lower hazard. Material science circles experiment with TMEDA-doped frameworks to stabilize nanoparticles or steer growth of organic semiconductors.
Toxicity Research
Toxicology studies track acute and chronic effects. Direct inhalation during unguarded transfer brings headaches, nausea, even nervous system impacts, a lesson I learned during an extraction mishap. Long-term skin exposure can sensitize workers, raising dermatitis risks even after low-dose contact. In animals, oral administration led to liver and kidney changes at moderate doses, while environmental studies flagged aquatic toxicity worries. Regulations limit workplace exposures to eight-hour averages, and periodic medical checkups follow for anyone with consistent TMEDA contact. Data support continued use but only under supervision and with a focus on engineering controls, personal protective gear, and air monitoring.
Future Prospects
TMEDA’s outlook sits at the intersection of greener synthesis and industrial practicality. As industries chase more sustainable chemistry, new research turns to using less hazardous methylating agents and inventing solventless routes for making TMEDA. Greener ligands pop up in academic journals every month, yet TMEDA’s proven record ensures its steady use, probably shifting toward more contained, automated systems to cut emissions and waste. Advances in catalysis and polymer science could open routes where TMEDA or its derivatives grant tighter control over polymer morphology or facilitate recyclable catalyst systems. Biotechnology conversations sometimes circle TMEDA derivatives for designing biocompatible carriers or drug delivery vehicles. Ongoing work explores ways to modify its backbone, so future versions might show lower toxicity, higher selectivity, or broader application ranges, but every advance grows from clear-eyed research, strong safety priorities, and lessons learned over years of discovery.
Taking a Closer Look at a Lab Staple
Tetramethylethylenediamine, or TMEDA as most scientists call it, might sound intimidating, but its role in the lab often gets overlooked by those outside chemistry circles. For folks like me, who have spent long afternoons in college organic labs, the faint smell of TMEDA in the air still triggers a memory or two—usually of careful pipetting and cross-checking calculations. But why do chemists rely on this particular compound so much?
How TMEDA Works for Chemists
TMEDA stands out because it’s a chelating diamine. That just means its structure lets it grab onto metal ions in a way that changes how those metals behave. In the lab, this property helps adjust reactivity in a slew of reactions, especially those called Grignard and lithium-based organometallic reactions. Back in my undergraduate days, we’d add TMEDA to a flask to help magnesium turn into a more active Grignard reagent. Without it, reactions moved at snail’s pace or stalled out completely.
Organic synthesis isn’t the only use case. Researchers often use TMEDA to control the size and shape of nanoparticles, opening up possibilities for battery research, solar cell innovation, and more efficient catalysts. At its core, TMEDA helps scientists nudge metals to do something they wouldn’t do naturally. For anyone making new molecules, that flexibility comes in handy.
Behind the Scenes in Industry and Research
Pharmaceutical companies rely on TMEDA for building complicated drug molecules. The compound plays a part in both the small-batch reactions happening in discovery labs and the larger-scale synthesis steps used in production. TMEDA has helped chemists create antiviral drugs, cancer treatments, and even specialty agricultural chemicals.
Some agricultural chemicals—especially new kinds of herbicides—require tricky bond formations. TMEDA acts as a supporting player during those reactions, keeping everything running smoothly. In polymer science, which covers everything from sticky adhesives to flexible electronics, TMEDA acts as a promoter for living polymerizations, letting scientists produce materials with predictable qualities.
Why Safety and Handling Can't Get Ignored
My old mentors always drilled us on one thing: TMEDA carries risks. The chemical releases vapors that catch in your throat, and skin exposure causes irritation. Safety data sheets warn about flammability. In the rush of discovery, it’s easy to skip a glove or fumble for the fume hood sash, but exposure incidents can knock a lab out of commission for hours. Labs benefit from storing TMEDA in sealed containers and using it only in well-ventilated areas.
Environmental concerns pop up too. TMEDA doesn’t easily break down outside the lab. Proper disposal becomes critical to keep it from building up in wastewater. Research teams can help by minimizing waste, and regulatory agencies enforce standards around its handling.
What Comes Next?
Green chemistry pushes researchers to find replacements or use less hazardous helpers when possible. New protocols often look for alternatives to TMEDA that reduce health and environmental risks, but the results haven’t wiped out TMEDA’s place in chemical research just yet. Some companies blend TMEDA with less volatile partners to cut down on volatility. Thorough safety training, regular monitoring, and investment in disposal technologies can manage many lingering risks.
TMEDA doesn’t just represent another chemical on the shelf. For students, researchers, and industry professionals, it opens doors to new discoveries—though always with responsibility in mind.
What Exactly Is Tetramethylethylenediamine?
Tetramethylethylenediamine—often called TMEDA—shows up in labs and some chemical manufacturing. Chemists like its knack for speeding up certain reactions, especially when working with metals like lithium or magnesium. TMEDA helps boost the formation of organometallic compounds, which turn into products like pharmaceuticals and after-market chemicals. Just because TMEDA has a key job in making other things doesn't mean it's friendly to handle.
Human Health Risks
People who work around TMEDA run into some serious hazards if they let down their guard. The vapor smells a bit like fish, a warning right up front. Breathing in TMEDA can irritate the nose, throat, and lungs, and lead to coughing, headaches, or dizziness. With big enough exposure, chemicals like TMEDA push further—potential nausea, weakness, or even lung damage.
Direct contact with the skin brings another batch of trouble. It stings and burns, sometimes cutting or reddening the skin. TMEDA splashed in the eyes isn't something to laugh off—it causes burning and watery eyes and could weaken vision if not flushed out quickly.
Environmental Impact—Not Just a Lab Story
TMEDA spills or leaks have ripple effects. It doesn't take a lot to contaminate water or soil since the compound dissolves easily. Fish and aquatic life face bigger threats, since TMEDA persists and can disrupt local eco-balance. In my experience, simple slipups in chemical storage have led to evacuations and expensive cleanups. Dealing with the aftermath of a spill means alerting more than the janitor; regulators and environmental inspectors step in, tracking the damage and tracing contamination.
Fire and Chemical Hazards
TMEDA carries some fire risk as well. It's a flammable liquid, so vapors can ignite with the spark of static electricity or something as basic as a hot light bulb. I've seen safety drills launched over far less. Once ignited, the fumes can overpower even seasoned responders. Firefighters have to suit up with protective gear and breathing equipment to avoid chemical exposure.
TMEDA reacts with acids or strong oxidizers and may form hazardous byproducts. These reactions can create foul-smelling gases or even explosive situations if mishandled. Good planning and coordination around storage spaces ought to be non-negotiable in any facility using the stuff.
Managing Risk
Safety starts with training and awareness. Workers dealing with TMEDA depend on gloves, goggles, and proper ventilation. Spills need fast action: absorbents, proper disposal, and checking surrounding areas for lingering fumes or residue. Anyone preparing or moving TMEDA keeps the storage at arm's length from heat and ignition sources.
Across my years in research labs, emergency showers and eye-wash stations often sit just a few steps from any bench handling TMEDA. Even a moment of carelessness can result in burns or poisonings, making safety gear a must rather than an afterthought. Regular inspections and strict inventory controls limit needless exposure and trim down the risk of surprise leaks or spills.
Regulatory bodies like OSHA have exposure limits, and for good reason. Following their guidelines means fewer workplace illnesses and a safer community. Chemical manufacturers now support suppliers with robust data sheets—anyone using TMEDA can check safe handling, first aid, and cleanup measures in plain language.
Steps Toward Safer Alternatives
Some labs now look for less toxic options or safer forms of amines for industrial processes. Investment in better ventilation and detection technologies helps catch leaks early. Sharing knowledge about TMEDA’s risks empowers more people to handle it responsibly, putting everyone in a safer spot—inside the lab and beyond.
Why Proper Storage Makes a Difference
Tetramethylethylenediamine (TMEDA) pops up a lot for people working in organic synthesis or managing chemical stocks. My hands-on experience sorting lab spaces taught me the simple truth: handling a strongly smelling, volatile liquid like TMEDA calls for respect and good habits. Get it wrong, lab mates start complaining about headaches or weird odors, and risk ramps up fast.
Real-World Storage Tips: Avoiding Accidents and Waste
TMEDA doesn’t just stink — it loves to evaporate if left open. Its boiling point sits around 121 °C, but it can still sneak into the air at room temperature. I’ve seen small containers dry up or leak, especially if stored next to heat or in a sunlit spot. A tightly-sealed glass bottle, fitted with a robust screw cap, blocks most escape routes. I always label these containers clearly, never letting faded writing turn confusion into a spill.
This solvent can react with oxygen, producing peroxides. I saw folks ignore that warning and later had to explain cloudy solutions or strange residues gumming up reactions. Keeping TMEDA away from oxidizers or open air stops that problem early. Access to a flammable cabinet locked every night leaves fewer headaches down the line. Not every lab wants to budget for a quality storage cabinet, but spending extra up front beats replacing supplies lost to fire or mystery gunk.
Heat and Sunlight: Friends of Danger
Leaving a bottle of TMEDA on a shelf near a radiator or window? Recipe for regret. Warmth speeds up evaporation and even decomposition. Fumes build up in a closed room, which risks irritating lungs or, in a worst-case, sparking a fire with one quick static discharge. I once worked next door to a facility where poor storage led to a full lab evacuation. Nobody forgets scrambling out, clutching notebooks, as alarms blare.
Humidity and Container Choice: Don’t Cut Corners
TMEDA doesn’t mix well with water in the air. Humidity sneaks in if containers don’t seal tight, and over time, the chemical absorbs moisture. This can mess up sensitive reactions or lead to product waste. Stainless steel isn’t a great match either; glass holds up best, though some suppliers deliver it in sturdy HDPE bottles that handle accidental bumps. I never reuse old plastic unless I'm certain it's clean, dry, and rated for organics. Cheap, unlabeled bottles, scavenged from other chemicals, invite cross-contamination that ruins months of work.
Ventilation and Local Safety Rules
Many labs overlook local exhaust ventilation, thinking a basic room fan covers for chemical vapors. A ducted fume hood cuts exposure right down, letting technicians avoid headaches and mystery fatigue from working near TMEDA. Storage rules aren’t just about ticking boxes for inspections; local safety requirements exist to avoid those painful lessons no one wants to learn the hard way.
Simple Safeguards: Best Practices Going Forward
Label every container as soon as TMEDA arrives. Stash it in flammable cabinets, away from heat and sunlight. Check seals before returning chemicals to storage, and review safety datasheets regularly as part of team meetings. Encourage questions; no one knows everything, and chemistry pays back attention with longer shelf life and fewer “cleanup required” days.
Good storage protects people and budgets, keeps reactions reliable, and saves time fixing issues that never needed to happen. Experience teaches most by what goes wrong — and TMEDA shows up in stories where a little caution made all the difference.
What Tetramethylethylenediamine Means in the Real World
Tetramethylethylenediamine, often called TMEDA, crops up in labs and industrial settings, especially wherever synthetic chemistry steps up. It plays a big role as a ligand or base in chemical reactions, particularly for researchers who work with Grignard reagents or lithium compounds. Anyone who’s spent time in a wet lab or a specialty chemical warehouse has seen the bottles with sharp-smelling, colorless TMEDA inside. It’s got its uses, sure, but the stuff can sting—literally and figuratively—if respect slips.
What Makes TMEDA a Challenge?
TMEDA gives off heavy, ammonia-like vapors. Anyone who’s popped the lid in a draft-free room catches a noseful almost immediately. Touch can irritate skin, eyes, and mucous membranes. Left alone, those vapors will catch with the right spark—they burn fast and hot. The mixture of chemical burns, toxic inhalation, and fire risk takes the idea of “safety protocol” from a check-the-box chore to a serious priority.
The National Institute for Occupational Safety and Health (NIOSH) and the Occupational Safety and Health Administration (OSHA) both set exposure limits. These limits exist for good reason: TMEDA exposure can lead to headaches, dizziness, and trouble breathing, especially if someone ignores fume control or tries shortcuts with gloves and eye protection.
Simple Habits, Big Difference
The right gear makes a huge difference. Lab coats and nitrile gloves help block skin exposure. Safety glasses or, better, a face shield stop splashes from hitting the eyes. I’ve seen colleagues try to make do with thin latex gloves or even just bare hands “for a quick transfer”—every seasoned chemist knows how that story ends, with skin stinging and a trip to the safety shower.
Ventilation ranks high on the list of non-negotiables. A well-maintained fume hood offers peace of mind. Poor ventilation leads to hidden exposure, which adds up. I’ve worked in rooms with busted hoods before—after an hour, the air starts to bite at the throat and eyes. Labs that value their people fix their hoods first, before buying more glassware or fancy equipment.
Storage and Spill Response
TMEDA belongs far from open flames or oxidizers. Small containers with tight-fitting lids cut down on accidental spills and vapor leaks. Keep it at room temperature away from direct sunlight—heat can make vapors build quickly. Flammable storage cabinets offer extra peace of mind, especially if the bottles stay there between uses.
Spills should never be an afterthought. Granular absorbents or spill pads mop up liquid fast. Scoop it into a sealed bag. Skip water; it can help spread the mess or, in some cases, react and give off more vapors. Train new lab members on real spill drills, not just on paper. I’ve seen panic turn minor leaks into major problems. Familiarity with clean-up tools and chemical disposal lines means nobody freezes if a bottle tips.
Training and Culture
Signs and safety sheets help, but nothing replaces hands-on training. Supervisors who walk new staff through correct handling leave a bigger impression than the best-written charts. Safety gets easier when it becomes routine, not something reserved for inspections. Regular refresher sessions, sharing quick stories of “near misses,” or even friendly reminders during shifts help everyone look out for one another.
The bottom line: TMEDA has a place in research and industry, but not at the expense of health. Smart habits, real-time training, and a strong safety culture move risk from looming threat to manageable reality.
Getting to Know the Stuff: Physical Traits
Tetramethylethylenediamine, better known in labs as TMEDA, isn’t shy about its smell or its presence. Pour some in a beaker and you’ll notice the colorless liquid has an odor you won’t forget, sharp and rather fishy. Put a bottle of TMEDA on the shelf in a warm room, and you’ll soon find the air picking up that scent. Its boiling point lands a little above 120°C, so it evaporates faster than water but slower than pure acetone.
TMEDA mixes smoothly with most organic solvents. It even blends with water, something you can’t say about a lot of chemicals used in organometallic synthesis. The density runs a bit lighter than water, so if you spill it, expect it to float on top before it mixes. TMEDA is also flammable, which means open flames or hot plates are not good friends to have nearby. Safety goggles, gloves, and good ventilation aren’t optional.
Chemical Personality: Why Chemists Like It

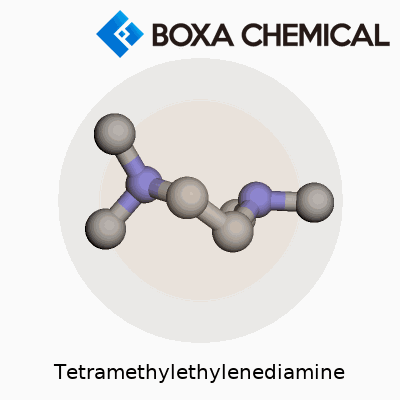

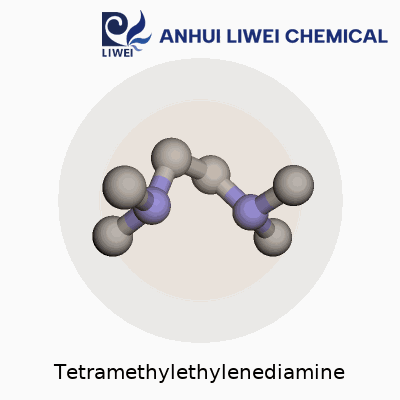

At its core, TMEDA is a bidentate ligand. It’s got two nitrogen atoms, and each one holds onto a methyl group. This setup lets TMEDA wrap around certain metal ions like a bear hug, stabilizing them and helping chemical reactions stay on track. Drop TMEDA in with lithium or magnesium compounds, and suddenly those metals act differently—sometimes getting more reactive, sometimes showing off reactions you’d never see without it.
You see TMEDA at work with Grignard reagents—those magnesium-based compounds that make chemists’ lives easier or harder, depending on the situation. With TMEDA, Grignards become even more reactive, allowing them to take on stubborn molecules in synthesis steps. In another example, lithiated TMEDA complexes perform crucial roles in making pharmaceuticals, materials, and a range of specialty chemicals. The flexibility comes from TMEDA’s ability to adjust its hold, creating a balance between stability and reactivity for those tricky organometallic intermediates.
This compound stands up to strong bases, moderate acids, and many organic conditions. Still, it won’t last long mixed with strong oxidizers or concentrated acids—like several molecules with amine groups, it burns off or breaks down under harsh chemical pressure.
Health and Environmental Considerations
Nobody should run casual experiments with TMEDA without protective gear. It irritates skin, eyes, and the respiratory system on contact or inhalation. While not a confirmed cancer risk, it’s best not to push personal limits. Spills need quick attention; soaking up the liquid with inert material and ventilating the area makes the lab safer for everyone. TMEDA vapor can travel further than expected, so lab folks check local guidelines for safe disposal of both liquid and contaminated materials.
There’s less environmental data on TMEDA compared to widely used solvents, but as a volatile organic compound, it doesn’t get a green stamp. It’s not terribly persistent in the environment, breaking down in air within hours to days. Still, that doesn’t mean pouring it down the drain is a good idea. Labs have switched to keeping waste streams separate and sending used TMEDA off for proper destruction, cutting down accidental release and avoiding water supply contamination.
Taking a Broader View
TMEDA lets chemists tackle reactions they couldn’t before—making tough carbon bonds or stabilizing reactive metals just long enough to complete a step. Its handling hazards and environmental questions push labs to rethink storage, usage, and waste, a pattern you see more as chemistry intersects with health and sustainability concerns. New ligands are always in the works, but TMEDA keeps its place for now, thanks in part to a mix of familiarity and performance in so many reliable protocols.
